Commercial Duty Wiper Assemblies



 Radial

Radial

 Pantograph

Pantograph

230 Unitized Assembly

Up to 71 cm (28") wiper arms / Up to 71 cm (28") wiper blades

  • Two-speed, 30 Nm stall torque motor
  • 12 V or 24 V
  • Radial or pantograph sweep pattern
  • Standard RFI suppression and circuit breaker
  • Clockwise or counterclockwise park available
  • LH or RH housing
  • May be mounted up, down, sideways, or diagonally
  • Sweep angles available from 36° to 115°
  • Various pivot shaft lengths from 16 to 76 mm with tapered knurl mounting
  • Compact size
  • SAE standard durability tested
  • FMVSS compliant
  • Performs well in marine environments
    • Sealed connector available
    • Stainless steel shaft hardware
  • 230 Unitized Assembly engineering print

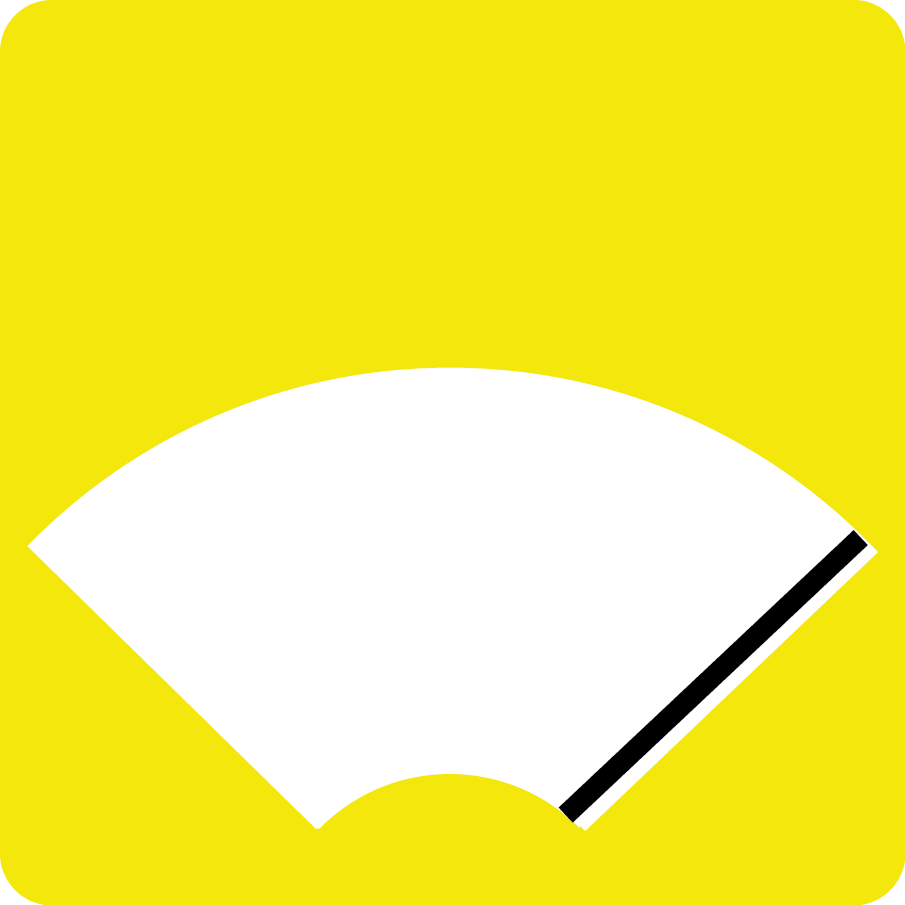

 Single Pivot Radial

Single Pivot Radial

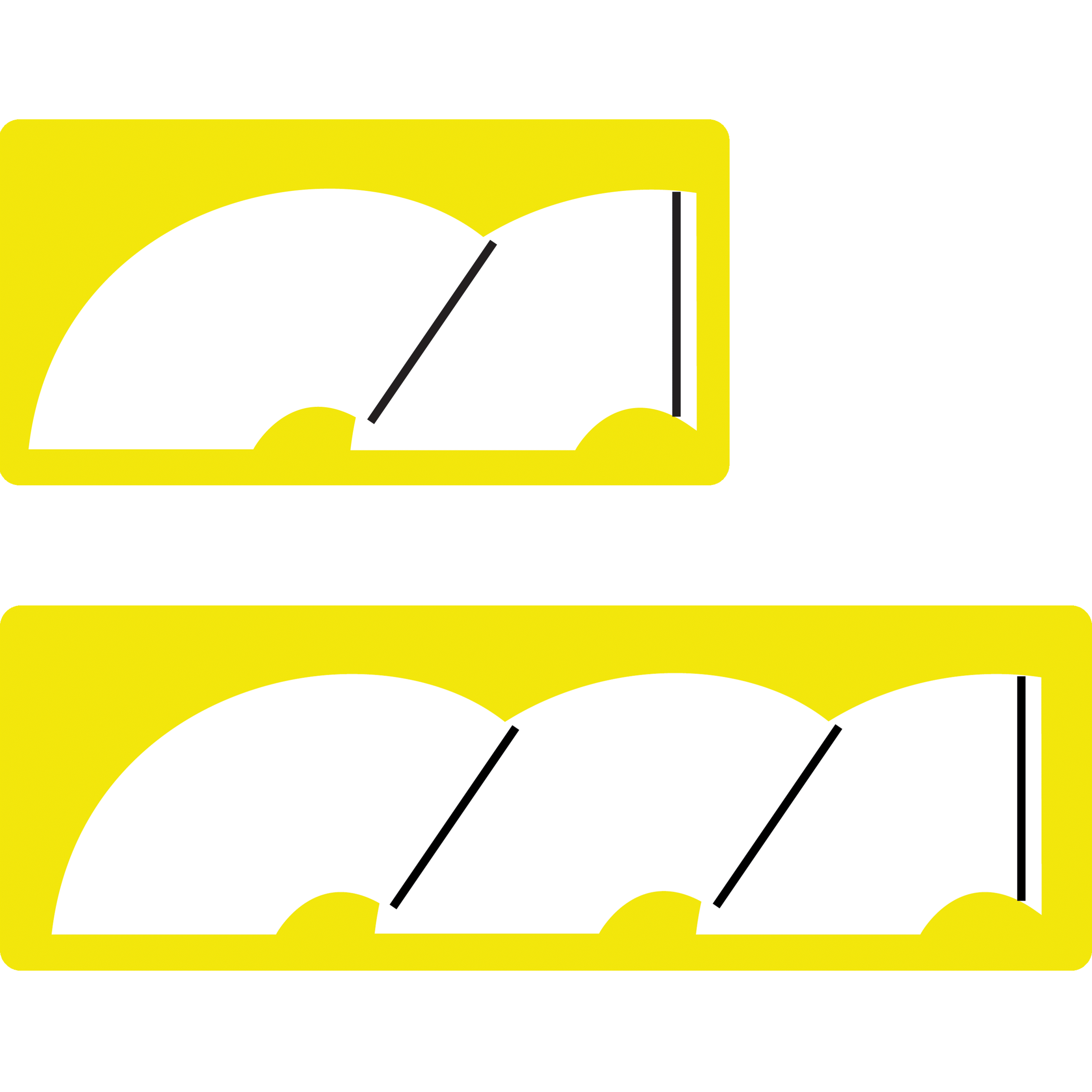

 Double Pivot Radial and Triple Pivot Radial

Double Pivot Radial and Triple Pivot Radial

1 Pivot, 2 Pivot, and 3 Pivot Radial Plug & Play Assembly

Easiest installation in the business eliminates frustrating component assembly and adjusting!

Up to 81 cm (32") wiper arms / Up to 81 cm (32") wiper blades

  • Two-speed, high efficiency 38 Nm stall torque dynamic park motor
  • 12 V or 24 V
  • Radial sweep pattern
  • Single, double, or triple pivots
  • Single switch synchronizes both arms
  • For use with single-piece panoramic glass or split glass
  • Standard RFI suppression and circuit breaker
  • Clockwise or counterclockwise park available
  • Sweep angles available in 90° or 106°
  • Compatible with standard or heavy duty wiper arms
  • Extra long pivot levers for improved wiper arm control
  • 17 mm steel pivot shafts improve torsional rigidity
  • Needle bearings in the pivot housings
  • Integrated tapered knurl or DIN shaft mounting
  • Linkage joints use greased bronze spherical bushings
  • FMVSS compliant
  • Motor and mounting bracket can be positioned above or below glass
  • 2P Radial Plug & Play Assembly engineering print

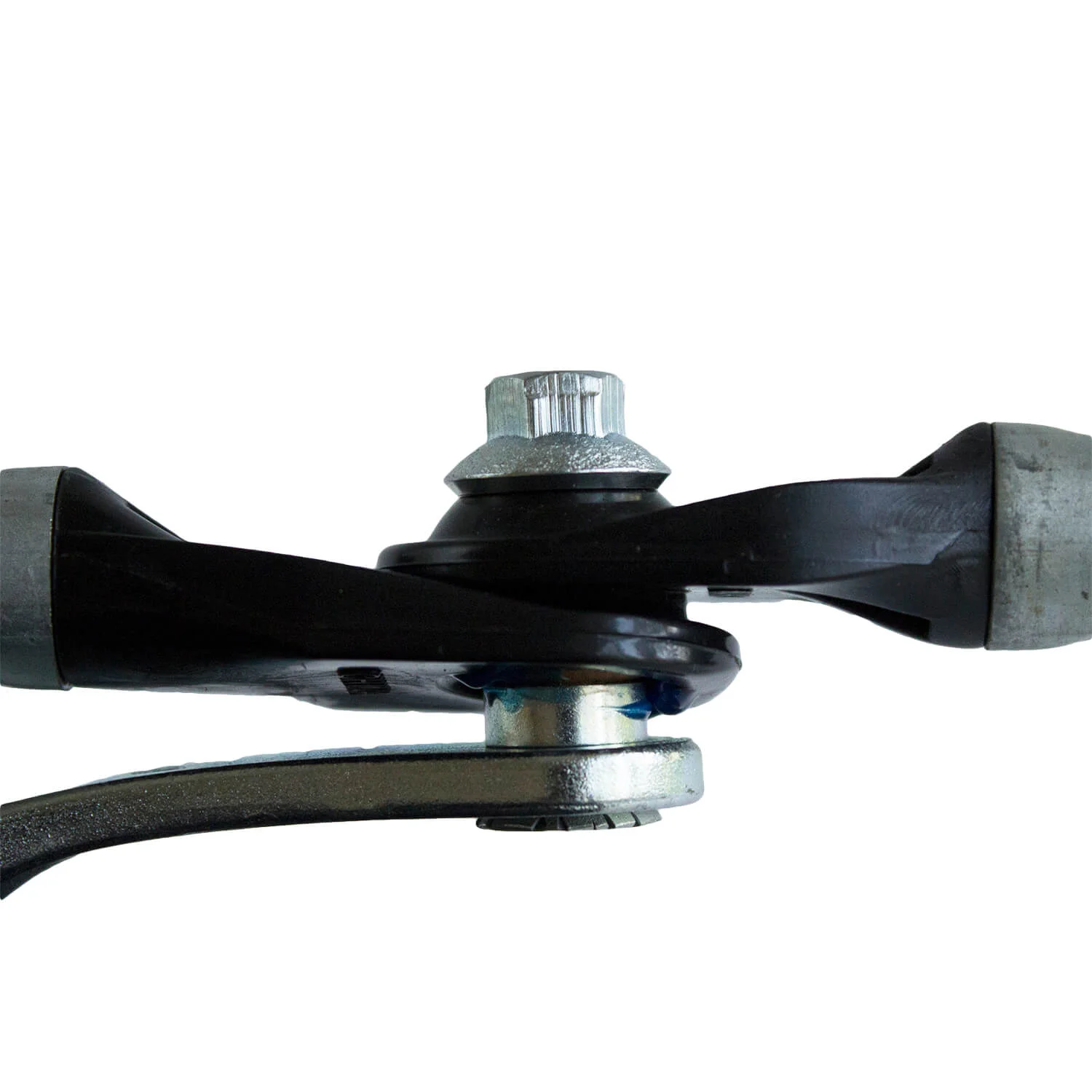

 Patented stacking Delrin® link ends reduce installation envelope

Patented stacking Delrin® link ends reduce installation envelope


 Two Pivot Pantograph

Two Pivot Pantograph

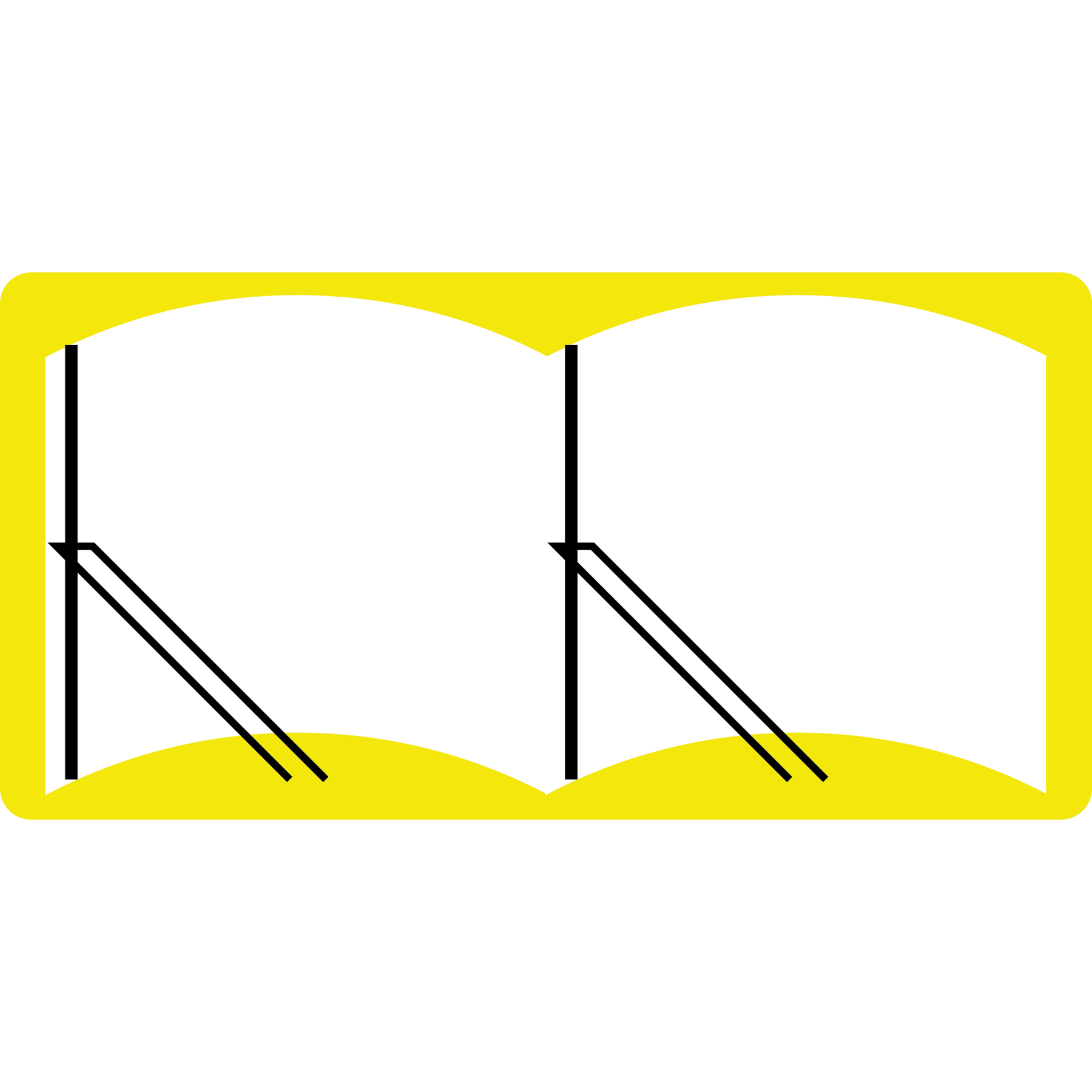

 Four Pivot Pantograph with Panoramic Glass

Four Pivot Pantograph with Panoramic Glass

 Four Pivot Pantograph with Split Glass

Four Pivot Pantograph with Split Glass

2 Pivot and 4 Pivot Pantograph Plug & Play Assembly

Easiest installation in the business eliminates frustrating component assembly and adjusting!

Up to 81 cm (32") wiper arms / Up to 81 cm (32") wiper blades

  • Two or four powered pivot shafts
  • Two-speed, high efficiency 38 Nm stall torque dynamic park motor
  • 12 V or 24 V
  • Pantograph sweep pattern
  • Single or double pivots
  • Single switch synchronizes both arms
  • For use with single-piece panoramic glass or split glass
  • In tandem motion, the same pivot points can work for panoramic or split glass with just a change in the motor drive arm
  • Standard RFI suppression and circuit breaker
  • Clockwise or counterclockwise park available
  • Sweep angles available in 80° or 85° (2 pivot); sweep angles available in 72° or 76° (4 pivot)
  • Compatible with standard or heavy duty wiper arms
  • Extra long pivot levers for improved wiper arm control
  • 17 mm steel pivot shafts improve torsional rigidity
  • Needle bearings in the pivot housings
  • Integrated tapered knurl or DIN shaft mounting
  • Linkage joints use greased bronze spherical bushings
  • FMVSS compliant
  • Motor and mounting bracket can be positioned above or below glass
  • Patented stacking Delrin® link ends reduce installation envelope
  • 4P Pantograph Plug & Play Assembly engineering print

 Patented stacking Delrin® link ends reduce installation envelope

Patented stacking Delrin® link ends reduce installation envelope


 Two Pivot Pantograph

Two Pivot Pantograph

 Pantograph Opposing

Pantograph Opposing

2 Driver Pantograph Plug & Play Assembly

Easiest installation in the business eliminates frustrating component assembly and adjusting!

Up to 81 cm (32") wiper arms / Up to 81 cm (32") wiper blades

  • Two powered pivot shafts
  • 35 Nm stall torque dynamic park motor
  • 12 V or 24 V
  • Pantograph sweep pattern
  • Standard RFI suppression and circuit breaker
  • Clockwise or counterclockwise park available
  • Sweep angles available from 45° to 80°
  • 17 mm steel pivot shafts improve torsional rigidity
  • Needle bearings in the pivot housings
  • 35 mm or 75 mm shaft length
  • Fully enclosed linkage does not require additional safety cover
  • 2D Pantograph Plug & Play Assembly engineering print

 Patented dual sector gear drive delivers power to both pivot shafts.  US Patent #7,739,771

Patented dual sector gear drive delivers power to both pivot shafts.  US Patent #7,739,771

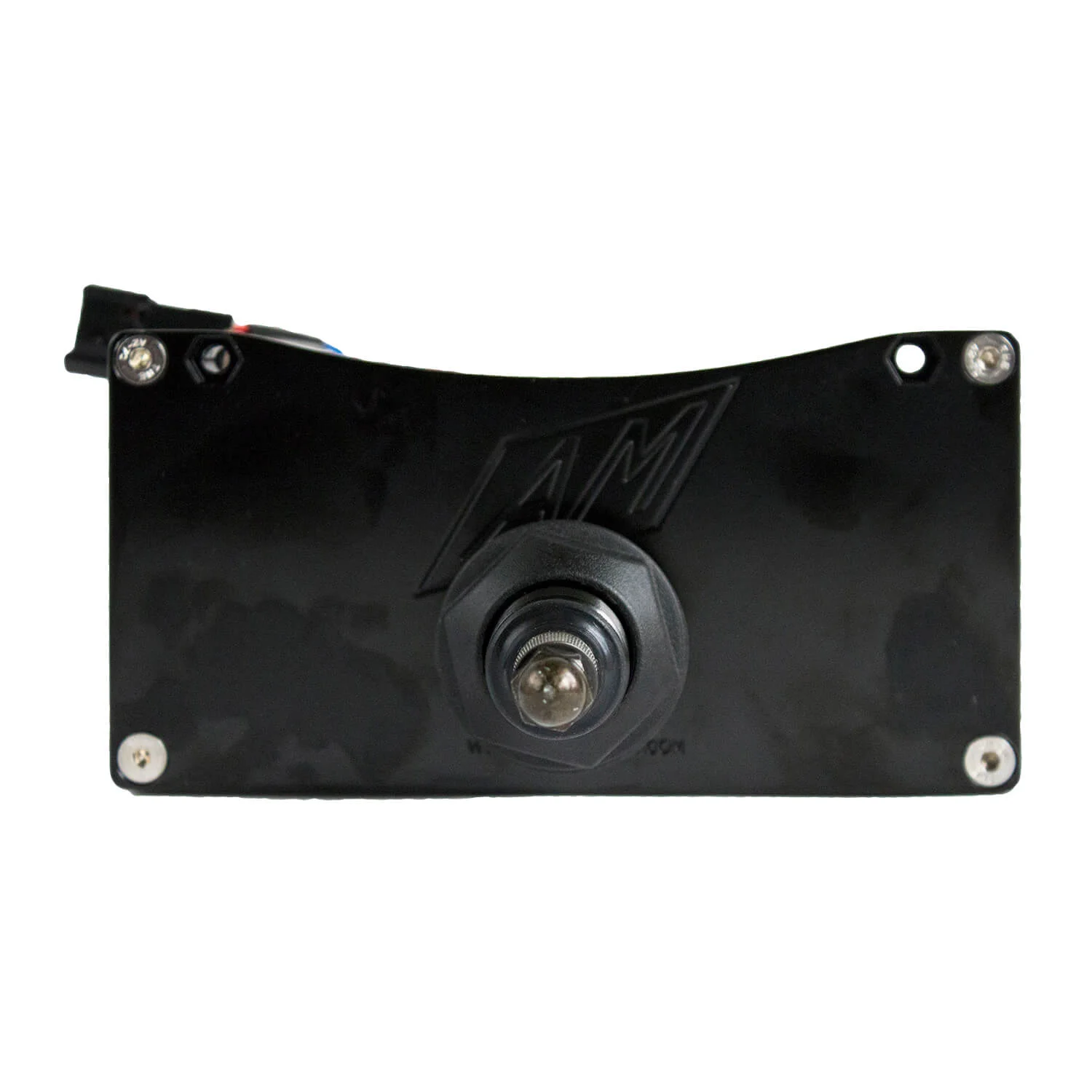

 Radial

Radial


 Wide Radial

Wide Radial

1 Driver Radial Plug & Play Assembly

Easiest installation in the business eliminates frustrating component assembly and adjusting!

Up to 76 cm (30") wiper arms / Up to 81 cm (32") wiper blades

  • 35 Nm stall torque dynamic park motor
  • 12 V or 24 V
  • Radial sweep pattern
  • Standard RFI suppression and circuit breaker
  • Clockwise or counterclockwise park available
  • Sweep angles available from 50° to 140°
  • 17 mm steel pivot shaft improves torsional rigidity
  • Needle bearings in the pivot housings
  • 35 mm or 75 mm shaft length
  • Fully enclosed linkage does not require additional safety cover
  • 1D Radial Plug & Play Assembly engineering print
