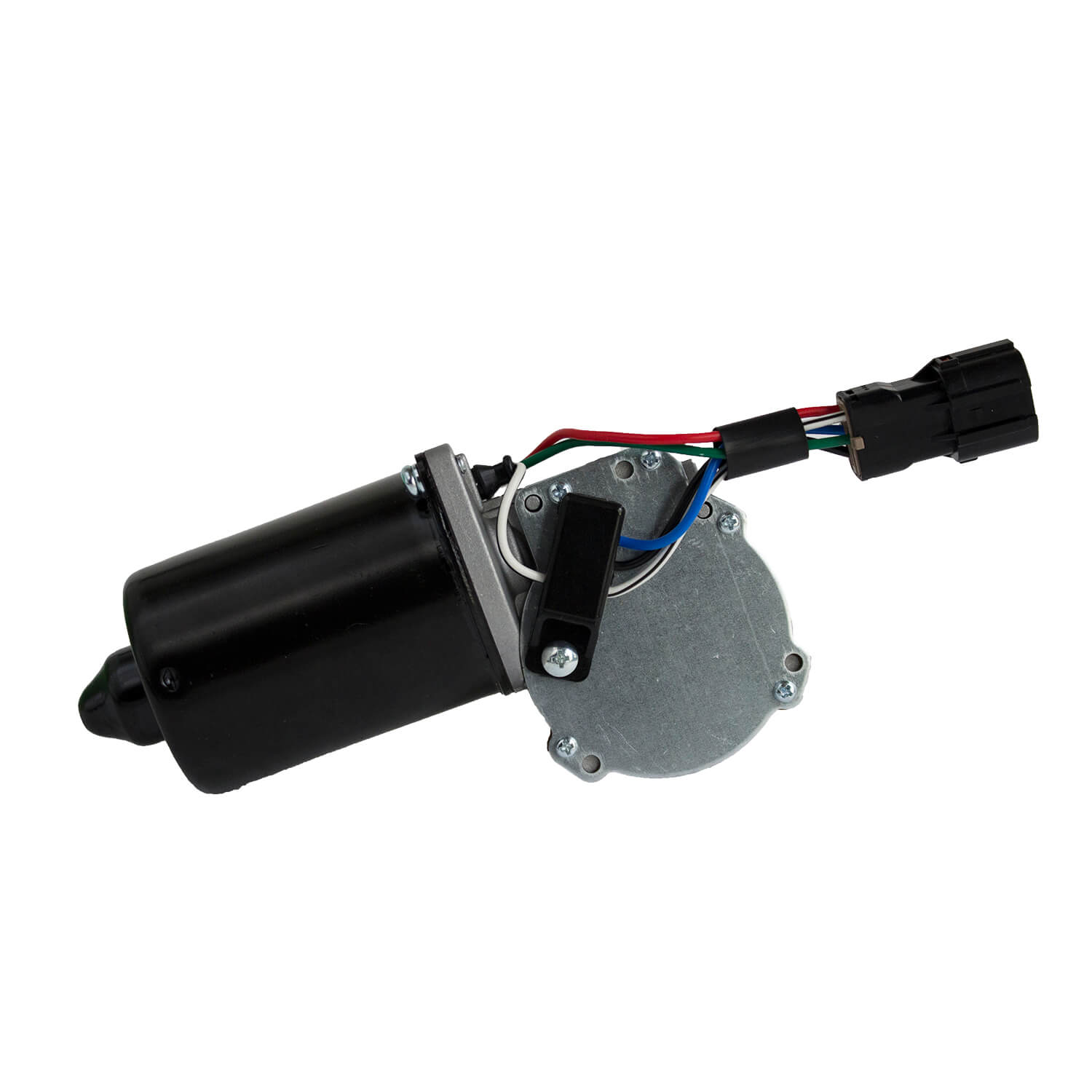

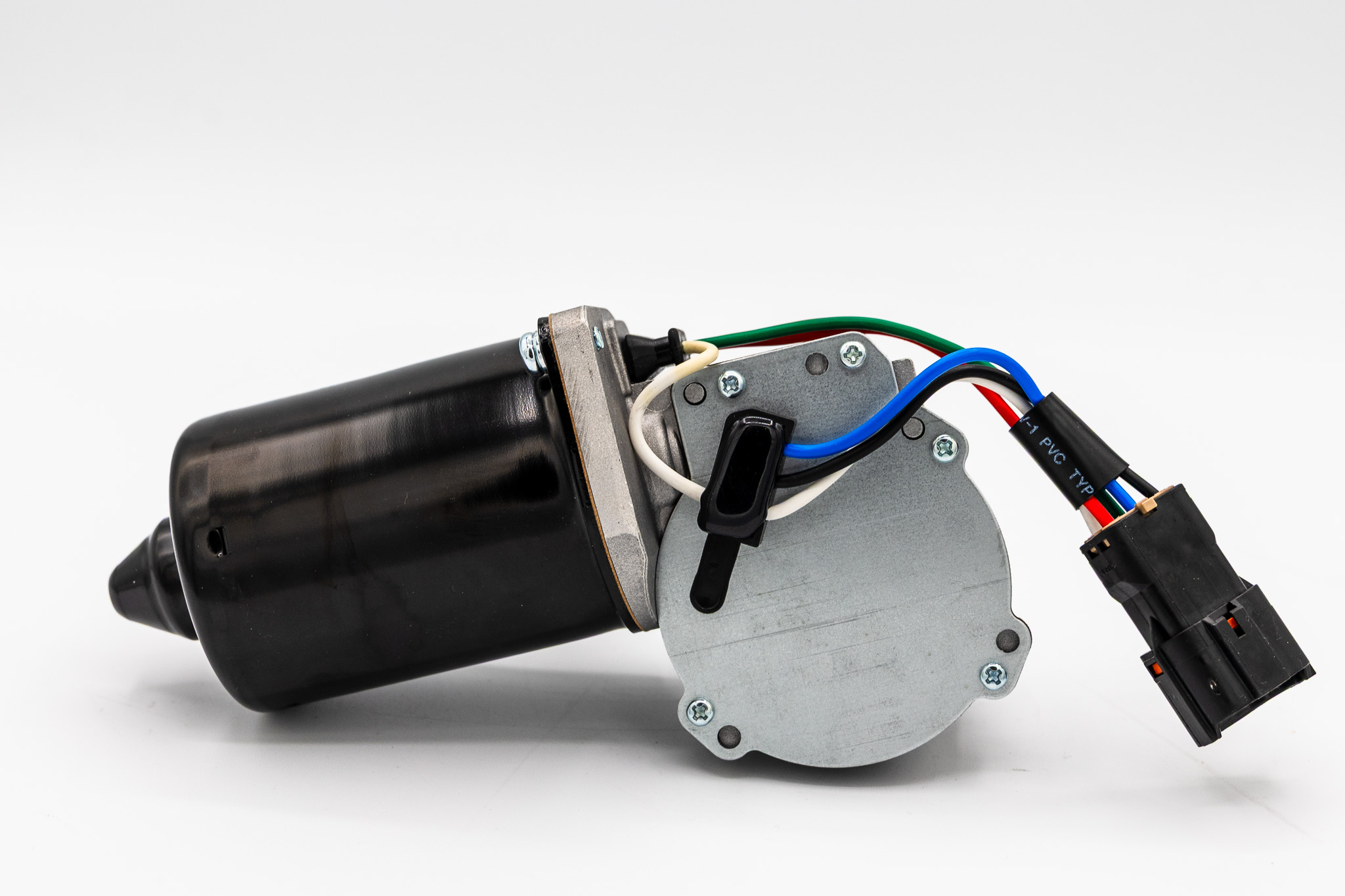

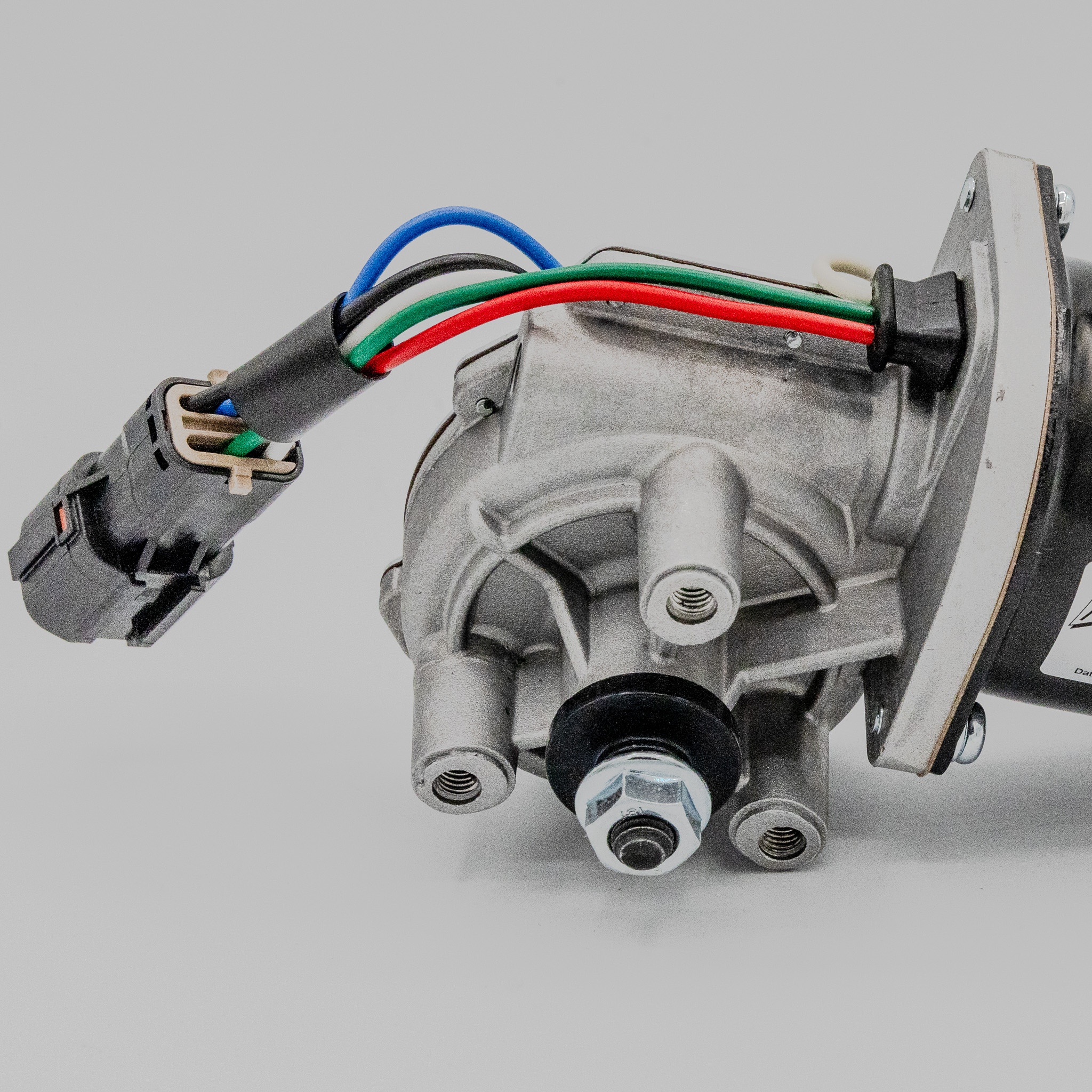

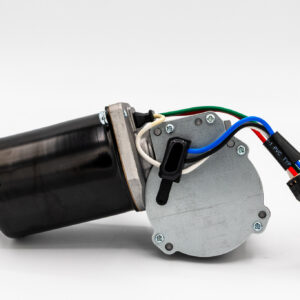

230 Series DC Gear Motor

$141.96

Description

Voltage Stall: 12V or 24V

Torque: 30 Nm

No Load Oscillations/RPM: 42 RPM low-speed and 65 RPM high-speed

Weight: 2.5 lb

Industrial/Wiper: Industrial and Wiper



Product Details:

  • 30 Nm stall torque in low speed
  • LH or RH housing
  • 12 V or 24 V
  • Two-speed motor (no-load low speed: 42 oscillations per minute; no-load high speed: 65 oscillations per minute)
  • Available in coast to park or dynamic park configuration for wiper applications
  • Counterclockwise rotation for LH housing; clockwise rotation for RH housing
  • Internal thermal circuit breaker and RFI suppression

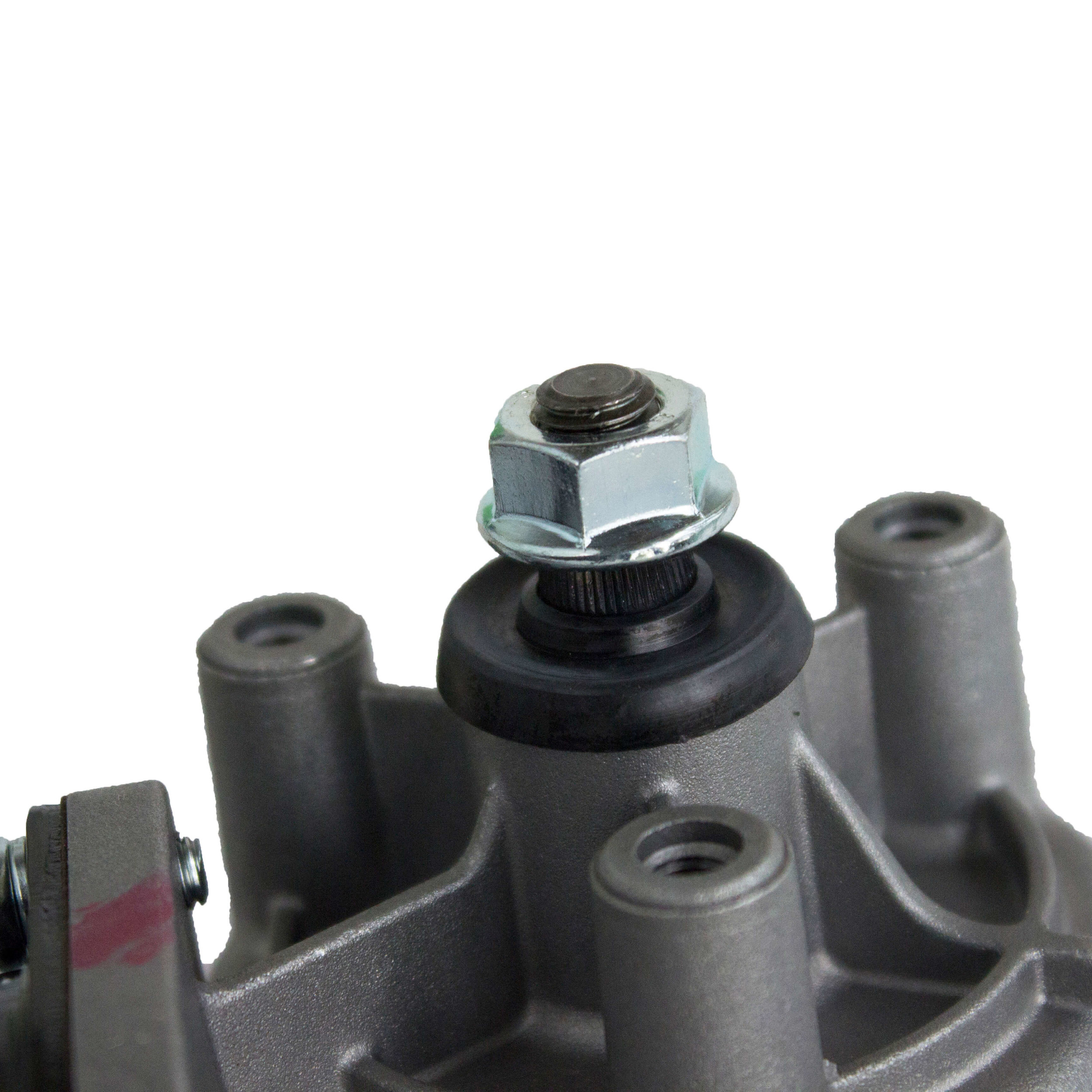

  • Output shaft is 11 mm with a DIN 3:1 splined taper
  • Includes output shaft nut
  • 2.5 pounds
  • Download engineering prints here

Additional information

Motor Type

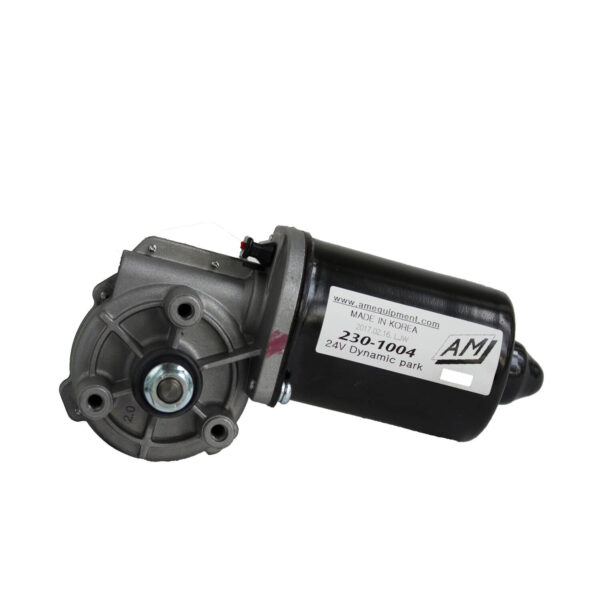

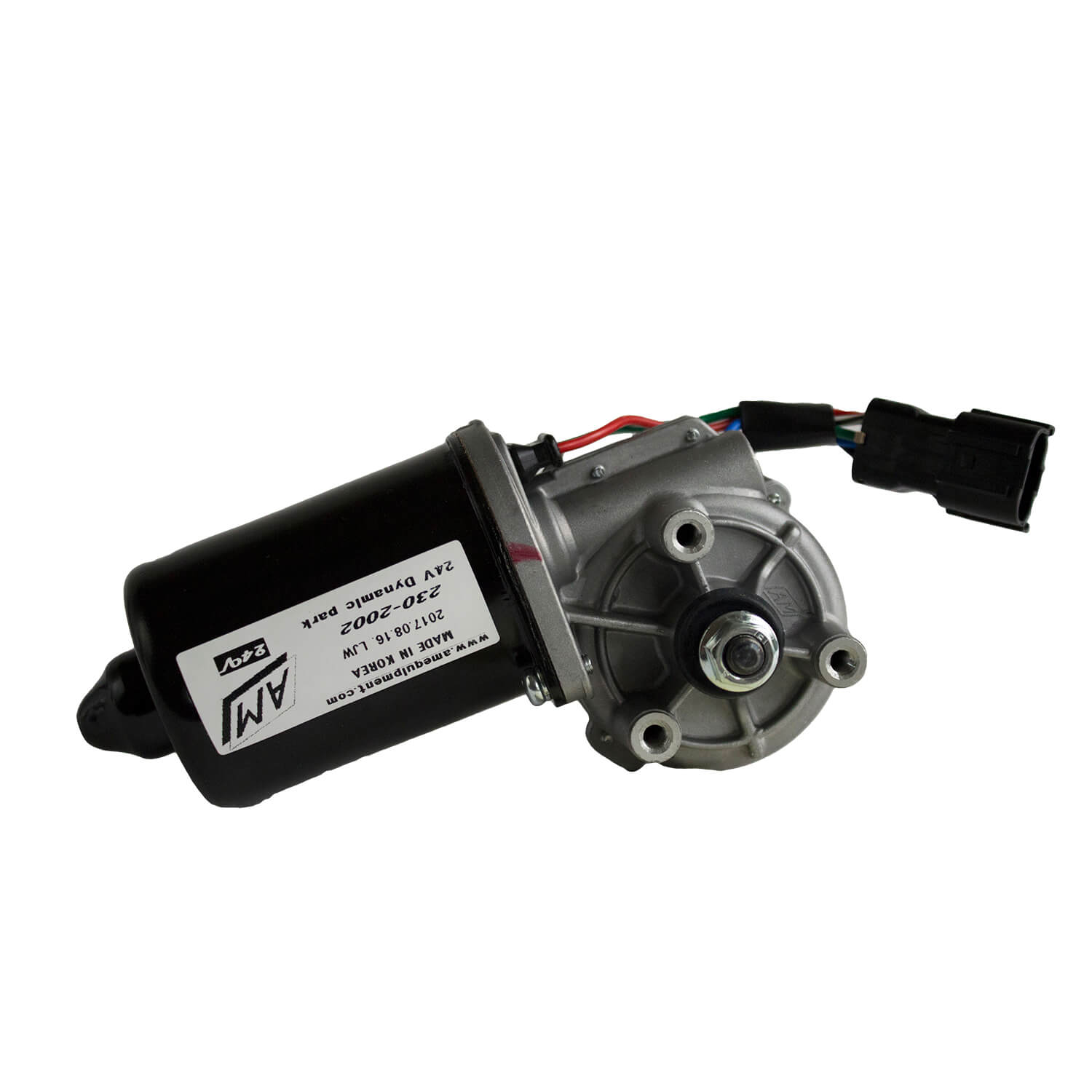

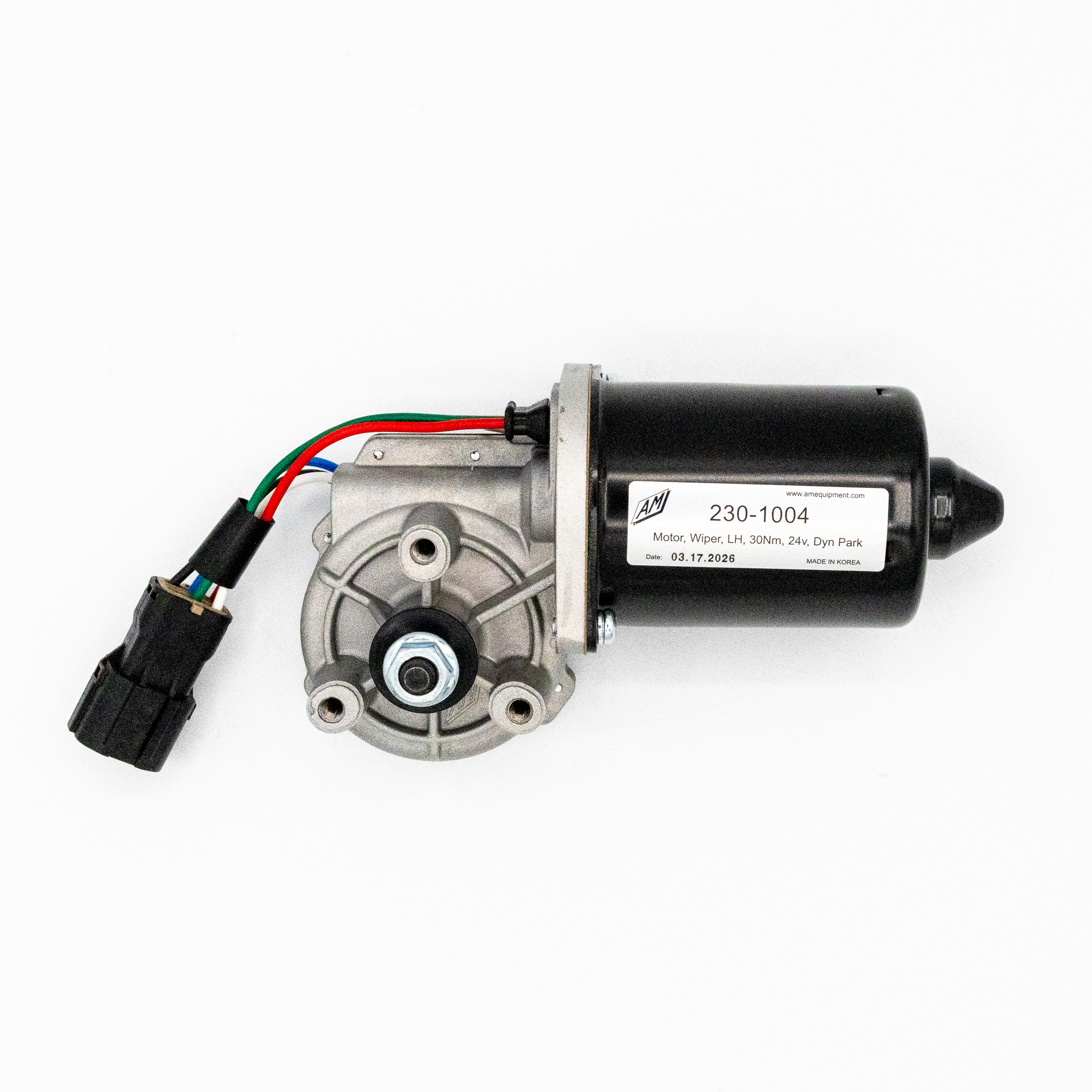

230-1002, 12 V, Coast-to-Park, LH Housing, 230-1455, 12 V, Coast-to-Park, LH Housing, ground through plug, 230-2005, 12 V, Coast-to-Park, RH Housing, 230-1001, 12 V, Dynamic Park, LH Housing, 230-2001, 12 V, Dynamic Park, RH Housing, 230-1005, 24 V. Coast-to-Park, LH Housing, 230-2006, 24 V, Coast-to-Park, RH Housing, 230-1004, 24 V, Dynamic Park, LH Housing, 230-2002, 24 V, Dynamic Park, RH Housing
