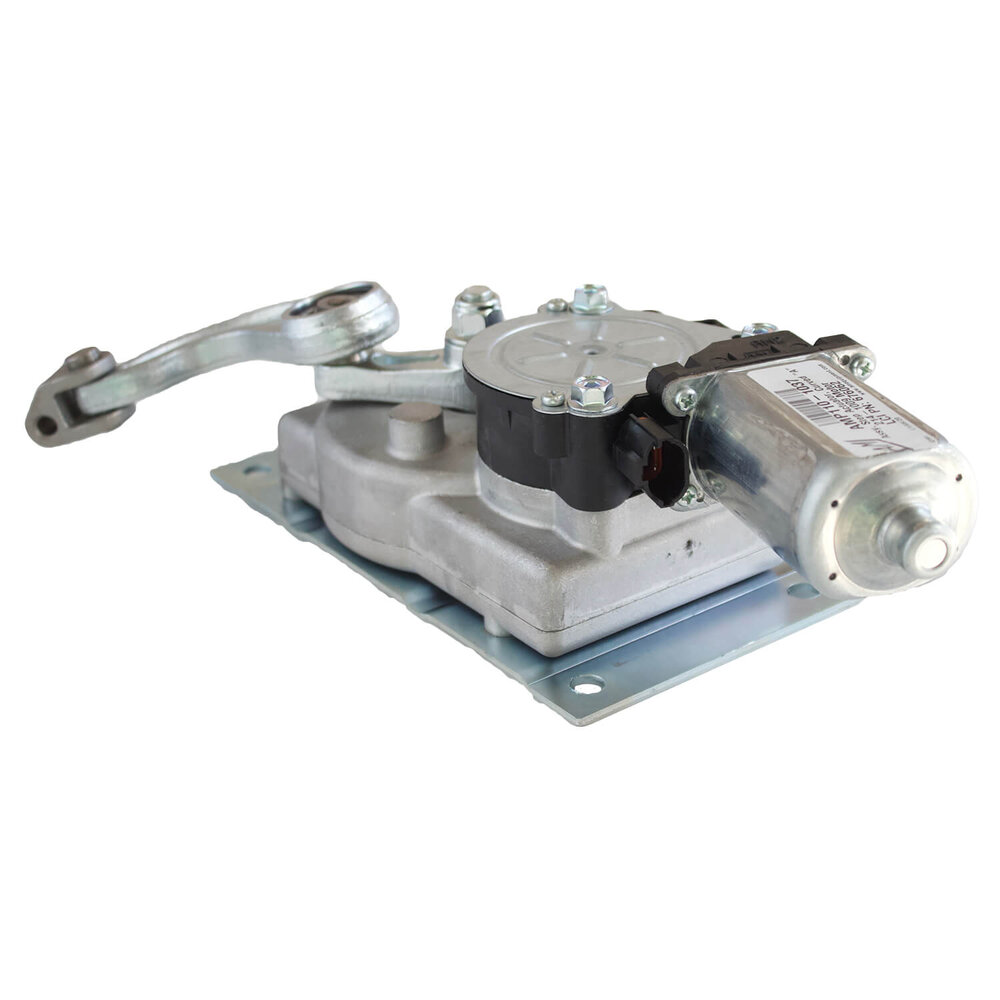

5:1 Gearbox with 214 Series Motor

Description

Original equipment replacements for LCI / Kwikee®
Economical motor/gear package
5:1 gear ratio
70 Nm output shaft stall torque
13 no-load oscillations per minute

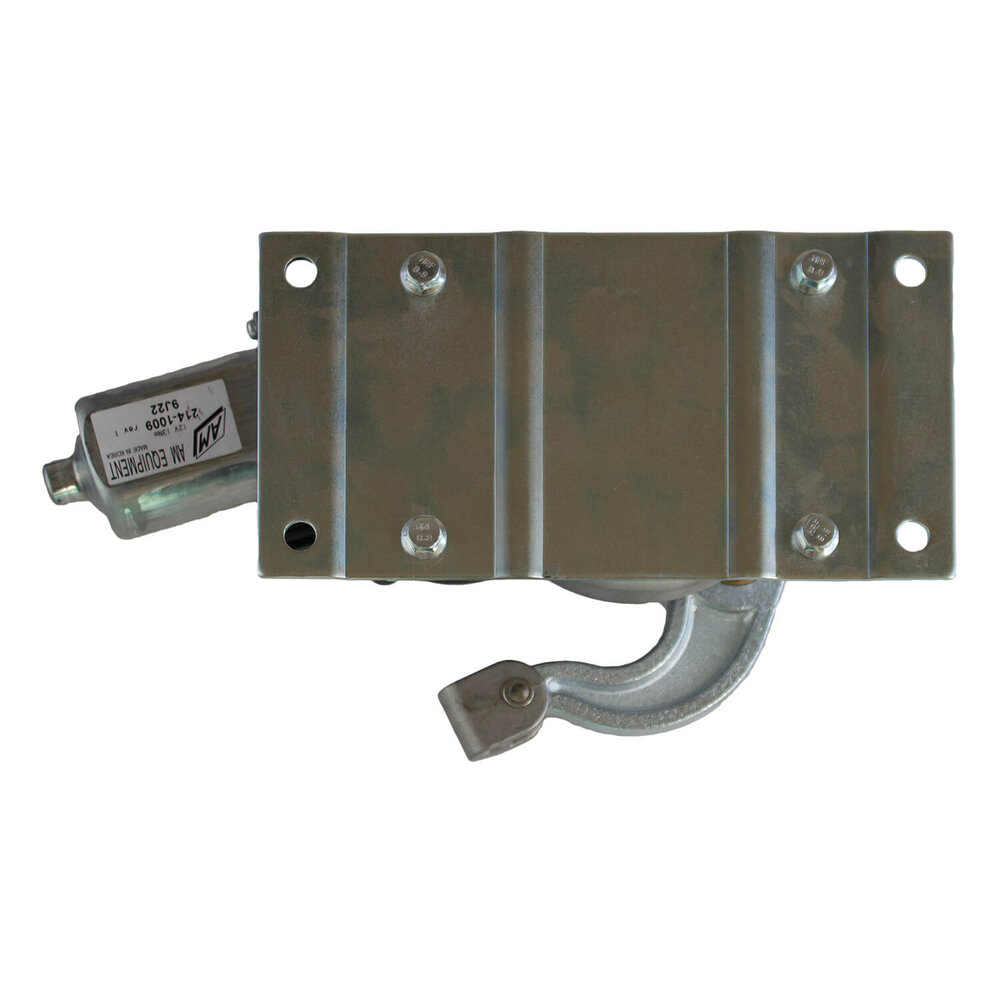

110 mm (4.25”) x 210 mm (8.25”) mounting plate
Supplied with an AM Equipment 214-1001 DC gear motor
17 mm diameter double flat power take-off shaft
13 rpm speed range at gear box
Durability tested to 50,000+ actuation cycles with linkage
Engineered and assembled in the USA
Three linkage options available
For CAD files, engineering prints, or other detailed information, please contact us

Linkage Type	110-1022, Curved "A", LCI / Kwikee 366043, 110-1023, Straight "B", LCI / Kwikee 369545, 110-1024, Straight "C", LCI / Kwikee 366047, 110-1037, Curved "A", LCI / Kwikee 676062, 110-1038, Straight "B", LCI / Kwikee 713488, 110-1039, Straight "C", LCI / Kwikee 713489
