Windshield Wiper Arms




Standard Duty Wiper Arms

  • Meets or exceeds FMVSS and SAE standards
  • Channel is made of UV stabilized composite; extension is powder coated stainless steel; mounting head is cast aluminum; matte black finish; tension spring is stainless steel
  • Compatible with tapered knurl, 1/2" drum with lever, 1/2" drum with set screw, M6 DIN, and M8 DIN pivot shafts
  • 9x4 mm hookslot (standard) or 14 mm saddle-type blade attachment
  • Optional wet kit features internal through-channel hose routing, choice of spray nozzle (channel-mounted one-jet, three-jet, or six-jet), and optional check valve


Standard Duty Radial Arms

  • Fixed arm length up to 710 mm (28")
  • Blade length up to 710 mm (28")
  • Adjustable blade angle optional
  • Extension side bends from right 50° to left 50° in 5° increments

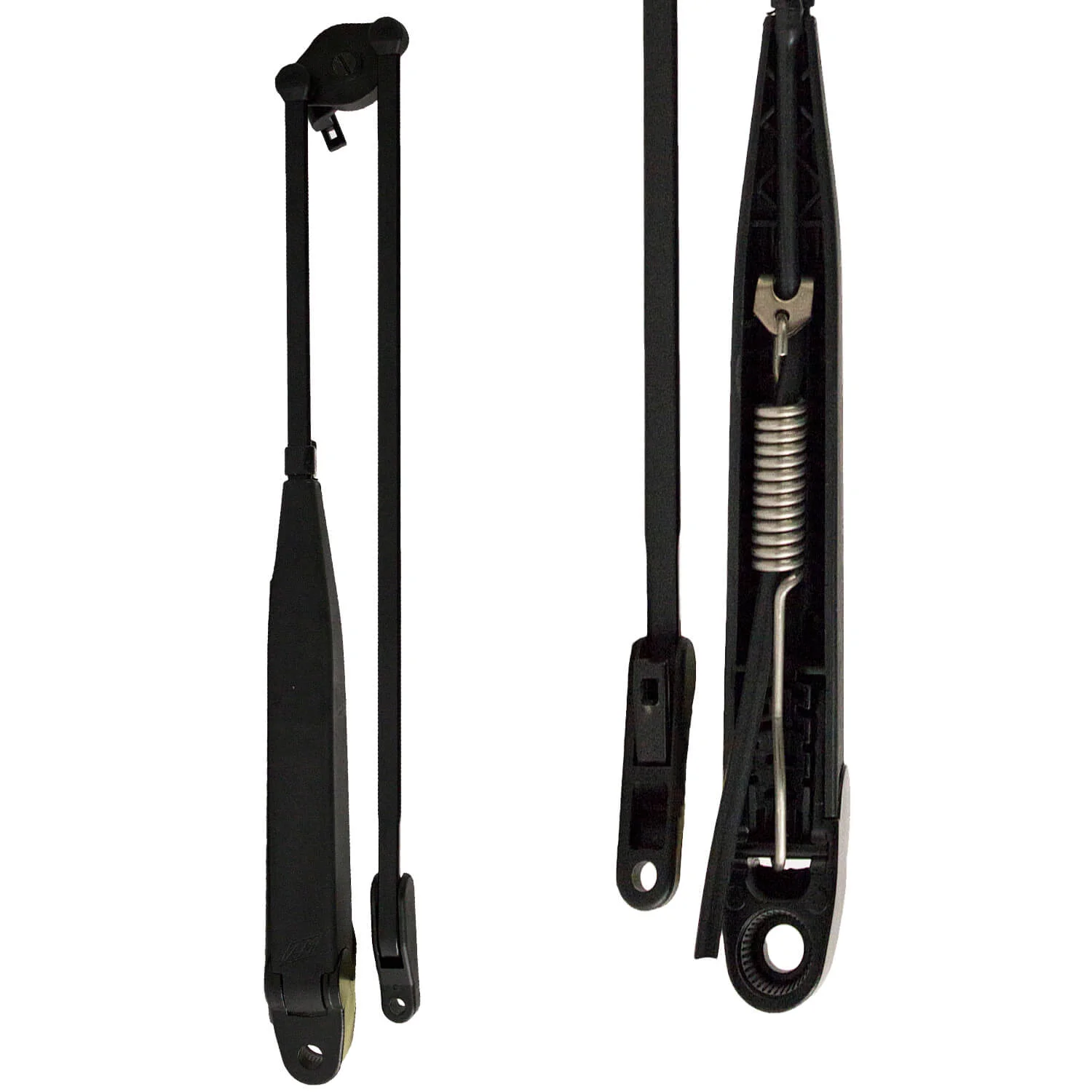

Standard Duty Pantograph Arms

  • Fixed arm length up to 710 mm (28")
  • Blade length up to 710 mm (28")
  • Adjustable blade angle included
  • Bridge width 32 mm (1.25") or 44.5 mm (1.75")


Standard Duty Double Driver Arms

  • Fixed arm length up to 760 mm (30")
  • Blade length up to 810 mm (32")
  • Adjustable blade angle included
  • Bridge width 60 mm (2.25")


Standard Duty Adjustable Radial Arms - Tapered Knurl Mounting

  • Length adjustable with a simple push lever
  • Adjustable angle head
  • Available with or without washer fluid nozzle
  • Meets or exceeds FMVSS and SAE standards
  • Channel is made of UV stabilized composite; extension is powder coated stainless steel; mounting head is cast aluminum; matte black finish
  • Compatible with tapered knurl pivot shafts
  • Hookslot (standard) blade attachment


Standard Duty Adjustable Radial Arms - 1/2" Drum Mounting

  • Length adjustable with a simple push lever
  • Adjustable angle head
  • Available with or without washer fluid nozzle
  • Meets or exceeds FMVSS and SAE standards
  • Channel is made of UV stabilized composite; extension is powder coated stainless steel; mounting head is cast aluminum; matte black finish
  • Compatible with 1/2" drum set screw pivot shafts
  • Hookslot (standard) blade attachment


Commercial Duty Wiper Arms

  • Meets or exceeds FMVSS and SAE standards
  • Channel and extension are powder coated stainless steel; mounting head is cast aluminum; matte black finish; tension spring is stainless steel
  • Compatible with tapered knurl, M8 DIN, and M10 DIN pivot shafts
  • 9x4 mm hookslot (standard) or 14 mm saddle-type blade attachment
  • Optional wet kit features internal through-channel hose routing, choice of spray nozzle (three-jet or six-jet), and optional check valve

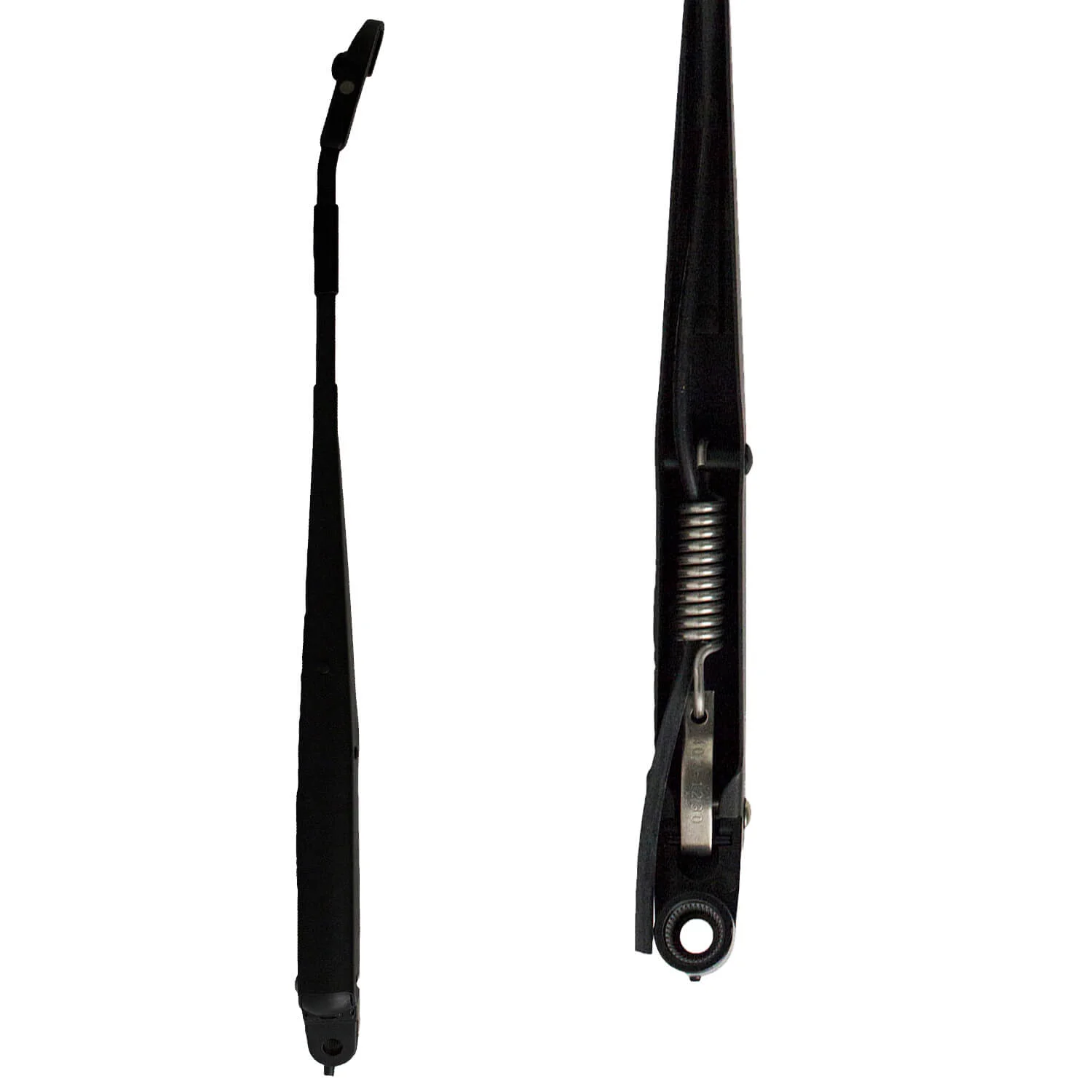

Commercial Duty Radial Arms

  • Fixed arm length up to 760 mm (30")
  • Blade length up to 810 mm (32")
  • Fixed blade angle
  • Extension side bends from right 50° to left 50° in 5° increments


Commercial Duty Pantograph Arms

  • Fixed arm length up to 760 mm (30")
  • Blade length up to 810 mm (32")
  • Adjustable blade angle included
  • Bridge width 44.5 mm (1.75")

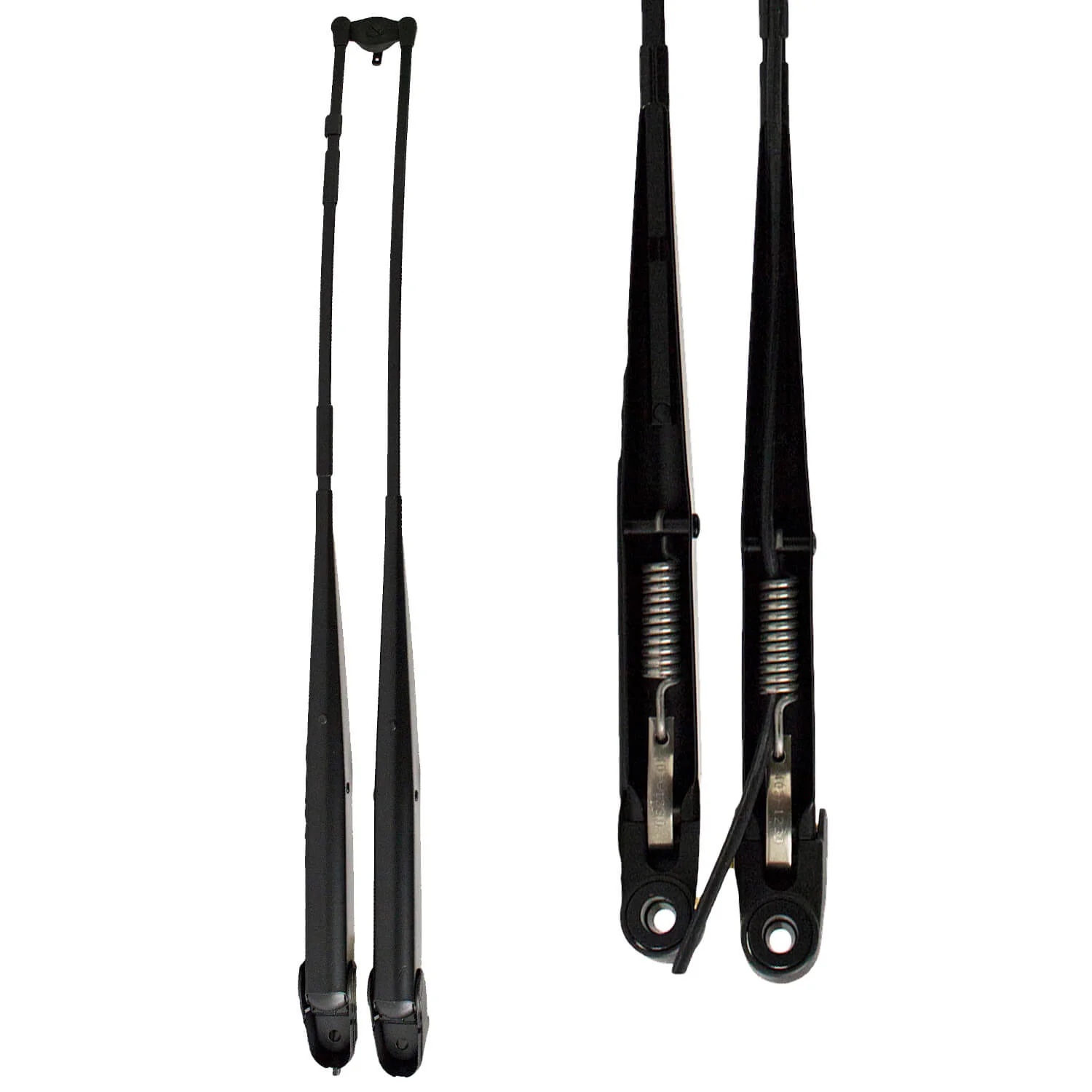

Commercial Duty Double Driver Arms

  • Fixed arm length up to 860 mm (34")
  • Blade length up to 810 mm (32")
  • Adjustable blade angle included
  • Bridge width 60 mm (2.25")


Heavy Duty Wiper Arms

  • Meets or exceeds FMVSS and SAE standards
  • Channel is powder coated stainless steel; extension is galvanized steel with vinyl cover (stainless steel optional); mounting head is cast aluminum; matte black finish; tension spring is stainless steel
  • Compatible with straight knurl pivot shaft
  • Hookslot or saddle blade attachment
  • Optional wet kit features internal hose routing, integrated six-jet spray nozzle, and check valve


Heavy Duty Radial Arms

  • Arm length up to 1220 mm (48")
  • Blade length up to 810 mm (32") with 9x4 mm hookslot
  • Blade length from 900 mm (36") to 1300 mm (52") with 20 mm saddle
  • Adjustable blade angle fixed at factory
  • Extension side bends from right 35° to left 35° in 5° increments


Heavy Duty Double Driver Arms

  • Arm length up to 1220 mm (48")
  • Blade length up to 810 mm (32") with 9x4 mm hookslot
  • Blade length from 900 mm (36") to 1300 mm (52") with 20 mm saddle
  • Adjustable blade angle included
  • Bridge width 60 mm (2.25")
  • 20 mm saddle required for blades longer than 815 mm (32")
